Cryptocurrency Exchange Architecture: How It’s Built, Layer by Layer (2026)

Cryptocurrency exchange architecture is the system design that connects a trading front end to a matching engine, a double-entry ledger, a risk engine and a tiered wallet system of hot, warm and cold storage. Get those five parts right and an exchange can match orders in microseconds, survive a traffic spike and prove it holds every coin it owes. Get them wrong and no amount of marketing will save it.

Have you ever wondered how a cryptocurrency exchange platform stands tall amidst all the issues? User base and marketing strategies play a vital role, but one of the main reasons an exchange succeeds or fails is its architecture. As a startup, your early phases will already be full of battles against limited budgets, fierce competition and legal regulations.

With all that on your plate, a glitchy exchange built without an architecture plan becomes an add-on disaster. So start with a clear understanding of the architecture, the unseen framework that decides whether you survive security breaches, regulatory checks and technical failures. This guide explains each layer, shows how an order and a withdrawal move through the system, and ends with a reference architecture you can hand to your engineers.

Key Takeaways

• Five core systems carry the load: the matching engine, the ledger, the risk engine, the wallet system and the compliance layer. Everything else (UI, admin, CMS) sits on top of them.
• The matching engine is deterministic, not parallel: each trading pair is processed on one thread in memory, in strict sequence, and replayed from an event log after a failure. LMAX showed this design can process 6 million orders per second on a single thread.
• The ledger is the source of truth: every balance change is a double-entry journal record, and the ledger is reconciled against on-chain wallet balances continuously, not monthly.
• Wallet security fails at the signing step: the $1.5 billion Bybit theft in February 2025 hit a cold wallet through a compromised signing interface, and Bitget's September 2026 loss came through spoofed transaction data, so the withdrawal pipeline needs independent transaction verification and policy controls, not just cold keys.
• Proof of reserves is an architecture feature: Merkle-tree liability proofs and on-chain asset proofs have to be designed into the ledger from day one.

What is Cryptocurrency Exchange Architecture?

Crypto exchange architecture is the underlying framework that acts as a blueprint for every component of a crypto exchange. It defines the user and admin interfaces, the trading core, the wallet and custody layer, the security controls and the way data moves between them.

A well-defined architecture lets traders place orders without delays or errors. It also puts robust security controls around user funds and data, and it gives the operator the records that auditors and regulators ask for.

In practice, a centralized exchange (CEX) splits into four zones:

• Edge: web and mobile apps, the API gateway (REST, WebSocket and FIX), DDoS protection and authentication.
• Trading core: order validation, pre-trade risk checks, the sequencer, the matching engine and market data.
• Money layer: the ledger, the wallet service, deposit and withdrawal pipelines, fiat rails and reconciliation.
• Control layer: KYC, transaction monitoring, sanctions screening, Travel Rule messaging, the admin back office, audit logs and monitoring.

Why is Architecture Significant to Launching Your Crypto Exchange Business?

The architecture of a crypto exchange is not just a technical detail. It is the backbone of the business, because it decides scalability, disaster recovery, security, performance, reliability and user experience.

Imagine a busy metro city where every tall building stands on a sturdy foundation. A crypto exchange works the same way: with strong architecture, it does not fall apart when a transaction storm hits. Architecture decisions also carry a direct cost. Every one of these failure modes has hit a live exchange, as our analysis of the challenges in creating a crypto exchange shows with recent incidents:

• A matching engine that cannot keep up freezes the order book during a volatile hour, which is exactly when traders most need to exit.
• A ledger without reconciliation lets a bug credit balances that do not exist on-chain, and the gap is found only when withdrawals fail.
• A withdrawal path without independent checks lets one compromised signing tool empty a wallet.
• A risk engine that prices collateral badly triggers liquidations that should never have happened.

Before diving into the architecture details, it helps to understand the fundamental steps of setting up an exchange. If you are planning to build one, read our guide on how to start a cryptocurrency exchange, which covers licensing, build options and a launch timeline.

Crypto Exchange Architecture – A Deep Glance

A strong crypto exchange architecture is not built overnight or on a shaky foundation. Here are the components that make up each layer, from the trading core outward.

Crypto Exchange's Core Architecture

• Trading Engine

The trading engine, also called the matching engine, matches buy and sell orders between users in real time. It keeps an order book for every trading pair and matches orders by price-time priority: the best price fills first, and at the same price the earliest order fills first. It supports limit, market, stop, post-only, immediate-or-cancel (IOC) and fill-or-kill (FOK) orders, plus self-trade prevention so one account cannot trade against itself.

• Crypto Wallet Management

The wallet service generates deposit addresses, watches blockchains for incoming funds, signs withdrawals and moves funds between hot, warm and cold storage. Most exchanges run custodial wallets, where the platform holds the keys, and some add a non-custodial wallet for users who want self-custody. Wallet security is where most exchange losses happen, so it gets its own section below.

• Ledger

The ledger records who owns what. Every deposit, trade, fee and withdrawal is written as a double-entry journal record, where debits always equal credits. User balances are calculated from the journal, never edited directly. This single rule makes audits, dispute handling and proof of reserves possible.

• Risk Engine

The risk engine checks every order before it reaches the matching engine: does the user have the balance or margin, is the price inside allowed bands, is the order size within limits? For margin and derivatives products it also calculates mark prices, monitors positions and runs liquidations.

• User Interface

An intuitive, easy-to-navigate interface is the part of the exchange traders actually see. Your users are not just looking for a place to trade; they are looking for trust, security and reliability. A smooth payment gateway integration adds to this by making deposits and withdrawals feel as simple as a card payment.

• Admin Dashboard

A robust admin dashboard gives the operator real-time views of users, transactions, revenue and alerts. A bike's engine deserves more attention than its paint, and the same applies here: the admin side needs as much engineering care as the user dashboard, because it holds the most powerful permissions in the system.

Choosing the right technologies for each of these components decides performance and scalability. For languages, databases and frameworks by layer, see our guide to the crypto exchange tech stack.

Security Architecture of a Crypto Exchange

• Multi-signature and MPC Wallets

Multi-signature wallets require several private keys to approve a transaction, so no single stolen key can move funds. Multi-party computation (MPC) wallets reach the same goal differently: the key is split into shares held by separate parties, and a signature is produced jointly without the full key ever being assembled. NIST's threshold cryptography project describes this approach as distributing trust so that corrupting a subset of parties does not expose the key.

• DDoS Protection

Distributed denial-of-service (DDoS) protection filters malicious traffic floods before they reach your servers. It keeps the exchange online when attackers try to overwhelm it, often timed to a volatile market when downtime hurts most.

• TLS Encryption

Transport Layer Security (TLS) encrypts traffic between the user's browser or app and the exchange, and certificate checks let the browser verify it is talking to the real exchange server. TLS replaced the older SSL protocol, which is deprecated; use TLS 1.2 at minimum and TLS 1.3 where possible.

• Data Encryption

Sensitive data such as identity documents, API secrets and personal details is encrypted at rest, with keys held in a key management service or hardware security module (HSM). Even if an attacker copies a database, the data stays unreadable. Passwords are never encrypted or stored in readable form; they are hashed with a slow algorithm such as Argon2 or bcrypt.

Security is the backbone of any crypto exchange architecture, and it extends beyond the design into audits, penetration tests and operations. Explore our in-depth guide on crypto exchange security to learn how to protect your platform against cyber threats.

User Interface Architecture

• Filter

One of the most needed features of the user dashboard is the filter option. It helps users sort markets by price, token, blockchain and volume.

• Search Bar

The search bar takes users straight to a token or trading pair without scrolling through the whole exchange. It becomes essential once the exchange lists a wide range of pairs.

• Account Settings

Users control their own account settings: theme, login credentials, notification preferences, security features such as two-factor authentication and passkeys, and withdrawal address allowlists.

• Dashboard Customization

Users can personalize their trading layout, from chart and order book positions to keyboard shortcuts, so the platform fits the way they trade.

• Trading options

Spot, margin and futures trading, with market, limit and stop orders, give users flexibility based on their risk tolerance and strategy. Each extra product adds work for the risk engine, so launch with the products your licence and risk systems can support.

• Market Price

Real-time prices, charts and order book depth are streamed to the user dashboard over WebSocket. Because crypto markets move fast, this feed must be accurate and low-latency.

• Whitepapers

Token information pages and whitepapers help users research the assets listed on the exchange before they trade.

• Customer Support

Account problems, transaction issues and general questions are handled through support. An effective support system builds trust, but support staff should see only the customer data they need for the ticket in front of them.

• Terms & Policies

Terms and policies set out the rules, user rights, fees and actions taken against violations. Clear, published terms also form part of what regulators review when you apply for a licence.

Admin Dashboard Architecture

• Monitoring

The operator sees real-time traffic, user activity, system health and security alerts in one place, which makes it faster to spot abnormal behaviour.

• User Management

Admins manage user accounts, verification status, limits and account restrictions, with every action recorded.

• Access Control

Admin access follows role-based access control (RBAC) and least privilege: each role sees and does only what it needs. Sensitive actions such as large withdrawals, limit changes or listing a new token require maker-checker approval, where a second person approves what the first person requested. No administrator should ever be able to see user passwords, PINs or private keys; the system should alert on repeated failed logins and unusual admin activity.

• KYC/AML Management

KYC (Know Your Customer) and AML (Anti-Money Laundering) tools verify identities, screen users and transactions against sanctions lists and blockchain risk data, and route suspicious cases to compliance staff. For what regulators require of these tools, see our guide to crypto exchange regulatory compliance.

• Order Book Algorithm

The order book algorithm is the set of rules by which buy and sell orders are matched and executed. It is what guarantees fair prices, orderly markets and efficient execution, and its parameters (tick size, minimum order size, price bands) are managed from the admin side.

• CMS

A content management system (CMS) runs announcements, banners, newsletters, policies and user guides, so the business team can update content without a code release.

• Audit Log

The audit log records every admin action, configuration change and system event in append-only storage that nobody, including administrators, can edit. Auditors, regulators and your own incident response team depend on it.

Liquidity Architecture

• API Integrations

APIs connect the exchange to liquidity providers, market makers, trading bots and external price feeds. Institutional clients often expect the FIX protocol alongside REST and WebSocket.

• Market Makers

Market makers are firms that place buy and sell orders continuously, keeping spreads tight and order books deep. They need low-latency API access, rate limits that fit their quoting and a fee schedule that rewards them. For strategies to bootstrap depth, read our guide to liquidity management in crypto exchanges.

• Pools (DEX)

Decentralized exchanges hold liquidity in smart-contract pools of token pairs, so traders can swap without a counterparty order. Some centralized and hybrid exchanges route orders to these pools when their own books are thin.

Scalability Architecture

• Load Balancing

Load balancing spreads traffic across many servers so no single server is overwhelmed. It is a scalability and availability layer, and it works for stateless services such as the API gateway and the market data fan-out.

• Sharding by Trading Pair

The matching engine does not scale by adding threads to one order book. It scales by giving each trading pair (or group of pairs) its own engine instance, so a spike in one market does not slow the others.

• Cloud-Native Services

Cloud infrastructure lets the exchange add capacity for the growing user base and transaction volume without buying hardware. Latency-sensitive parts, such as the matching engine, are often pinned to dedicated instances. Scaling is a plan, not a server count: size it with the worked example later in this guide.

Backup Architecture

• Recovery Plans

The matching engine writes every input event to a durable journal before processing it, and standby replicas replay the same events. If the primary fails, a replica takes over with the same state. Databases are backed up across availability zones, and recovery is tested with regular restore drills, because a backup that has never been restored is a hope, not a plan.

How an Order Moves Through a Crypto Exchange

Following one order through the system shows how the layers connect.

1. Gateway: the order arrives over REST, WebSocket or FIX. The gateway authenticates the API key or session, applies rate limits and validates the format.
2. Pre-trade risk check: the risk engine confirms the user has the balance or margin, and the ledger locks the funds so they cannot be spent twice.
3. Sequencer: the order gets a global sequence number and is written to the event journal. From this point it can be replayed after any failure.
4. Matching engine: the engine matches the order against the book for that pair by price-time priority and emits trade events, or rests the order in the book.
5. Settlement in the ledger: each trade becomes double-entry journal records: the buyer's quote currency moves to the seller, the base currency moves the other way, and fees move to the exchange's fee account.
6. Market data: the book change and the trade go out as sequenced updates to every subscribed client, and to candle and ticker aggregators.
7. Post-trade: transaction monitoring scores the activity, and for leveraged products the risk engine recalculates margin.

The key design choice is that the matching engine never touches a database during matching. It works in memory on events in strict order, which is how the LMAX design reached its throughput, and durability comes from the journal written before processing.

Crypto Exchange Wallet Architecture: Hot, Warm, Cold and MPC

The wallet layer holds customer money, so it needs the most careful design. Most exchanges use three tiers:

• Hot wallet: online and automated, used for everyday withdrawals. It should hold only what normal withdrawals need.
• Warm wallet: online but gated by policy: MPC or HSM signing, human approval and time delays. It refills the hot wallet.
• Cold storage: offline keys, signed through a documented multi-person ceremony, holding the large majority of assets.

Coinbase's 2025 annual report describes customer crypto held "primarily in wallets within its cold storage environment" and states that it holds corporate assets in excess of the total held in its hot wallets. That second rule is a useful design target for any exchange: size the hot wallet so that your own capital could cover its complete loss.

Multisig or MPC?

Neither model protects you if the people approving a transaction cannot see what they are really signing. The FBI attributed the $1.5 billion Bybit theft of 21 February 2025 to North Korean "TraderTraitor" actors. The funds left a multisig cold wallet after the signers approved a transaction through a compromised signing interface. The same pattern returned on 24 September 2026, when Bitget reported losing $351.6 million from its hot and warm wallet layers after attackers compromised a backend system and used it to spoof transaction data; its cold wallets were not affected, and the investigation is still under way. The architectural lesson is to verify every high-value transaction on a separate, independent device that decodes the real destination and payload, and to enforce destination allowlists and time locks in a policy engine the signing interface cannot change. For build options and trade-offs, see our guide to MPC wallet development.

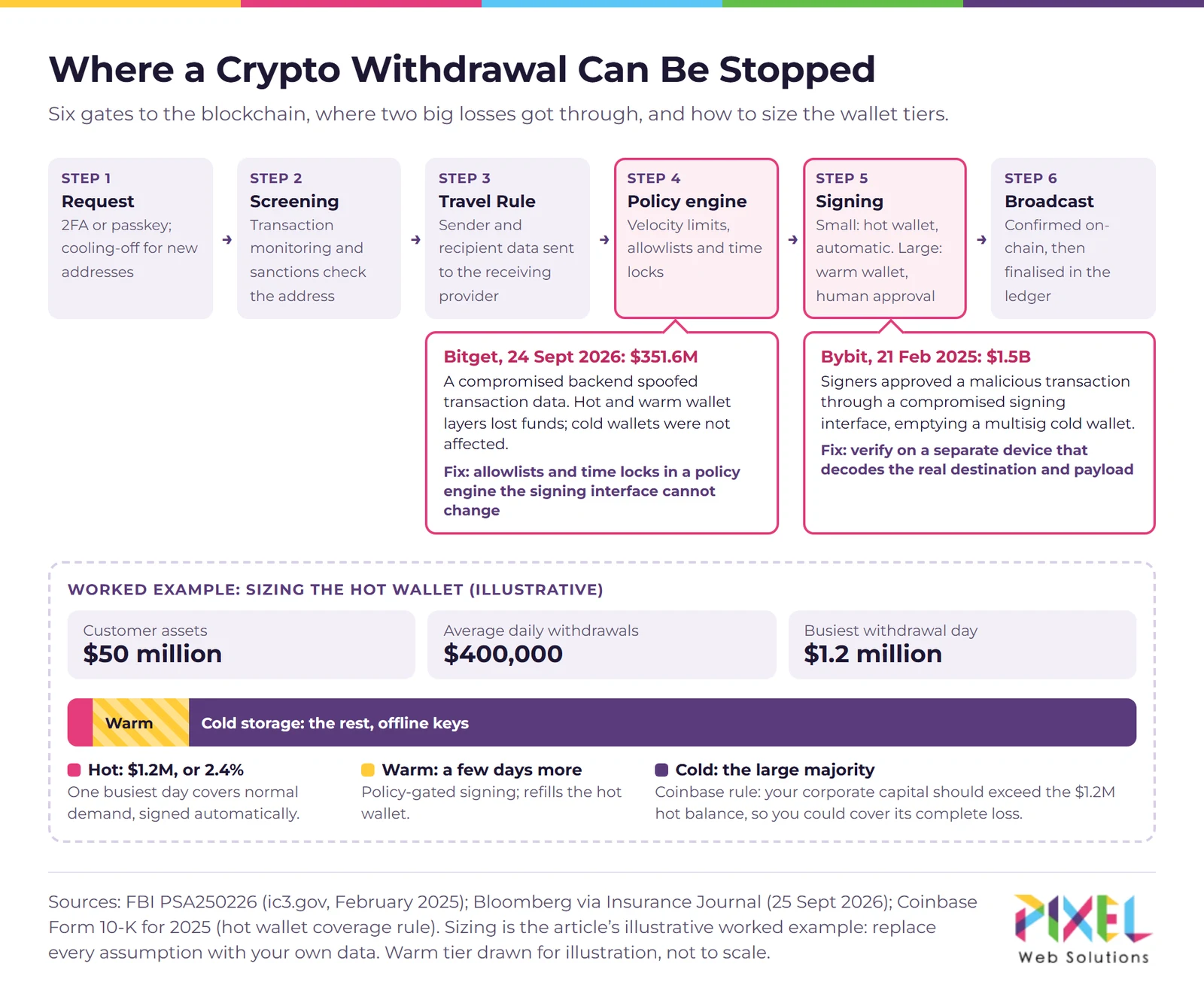

The Deposit and Withdrawal Pipelines

Deposits flow from blockchain nodes to a block scanner, which spots transfers to user addresses. The deposit is credited to the ledger only after a chain-specific number of confirmations, and the scanner must handle chain reorganisations, where a confirmed block is replaced. Every deposit is screened with blockchain analytics before the funds become withdrawable.

Withdrawals pass through more gates:

1. The user authenticates with two-factor authentication or a passkey; new withdrawal addresses face a cooling-off period.
2. Transaction monitoring and sanctions screening score the destination address.
3. If the destination is another exchange or custodian, the Travel Rule message with sender and recipient data is sent before the transfer.
4. The policy engine applies per-user, per-asset and platform-wide velocity limits.
5. Small withdrawals are signed automatically from the hot wallet; large ones go to warm signing with human approval.
6. The transaction is broadcast, confirmed on-chain and finalised in the ledger.

Ledger, Reconciliation and Proof of Reserves

A ledger bug is the quietest way to lose money. Three rules keep it honest:

• Double entry, append only: every movement is a pair of journal entries that sum to zero, and entries are never edited, only reversed by new entries.
• Available and locked balances: funds committed to open orders or pending withdrawals are locked, so the same coin cannot be used twice.
• Continuous reconciliation: for every asset, the ledger's total customer liabilities are compared with on-chain wallet balances on a schedule measured in minutes or blocks. Any drift raises an alert and can pause withdrawals of that asset automatically.

Proof of reserves builds on this ledger. The exchange publishes a Merkle root of all customer balances so each user can check that their balance is included, and it proves control of wallets holding at least that amount. Binance's proof of reserves adds zk-SNARK proofs that the total is correct and that no account carries a hidden negative balance. Vitalik Buterin's analysis of proof of solvency also explains the limits: a snapshot proves assets at one moment, and it cannot show liabilities kept off the published tree, so pair it with an independent auditor's work. Design the ledger to export a liabilities snapshot on demand, and proof of reserves becomes a report, not a project.

The Risk Engine: Pre-Trade and Post-Trade

The risk engine is the part of crypto exchange architecture that founders most often underbuild.

Pre-trade controls run on every order: balance or margin check, price bands that reject orders far from the last trade, maximum order size and per-account rate limits. These stop fat-finger errors and runaway bots before they reach the book.

Post-trade controls matter once you offer margin or derivatives:

• Mark price and index price are calculated from several external exchanges, not only your own order book, so a thin local book cannot trigger liquidations. During the record liquidation cascade of 10 October 2025, USDe, wBETH and BNSOL briefly depegged on Binance because collateral pricing leaned on its own books; Binance compensated affected users and changed its index to include redemption prices.
• The liquidation engine closes positions that fall below maintenance margin, gradually where possible.
• An insurance fund absorbs losses when a liquidation cannot close at a price better than bankruptcy, and auto-deleveraging is the last resort.
• Circuit breakers pause a market when prices move beyond set limits in a short window.

If you plan to add futures, budget for the risk engine as a product in its own right, with its own testing and monitoring.

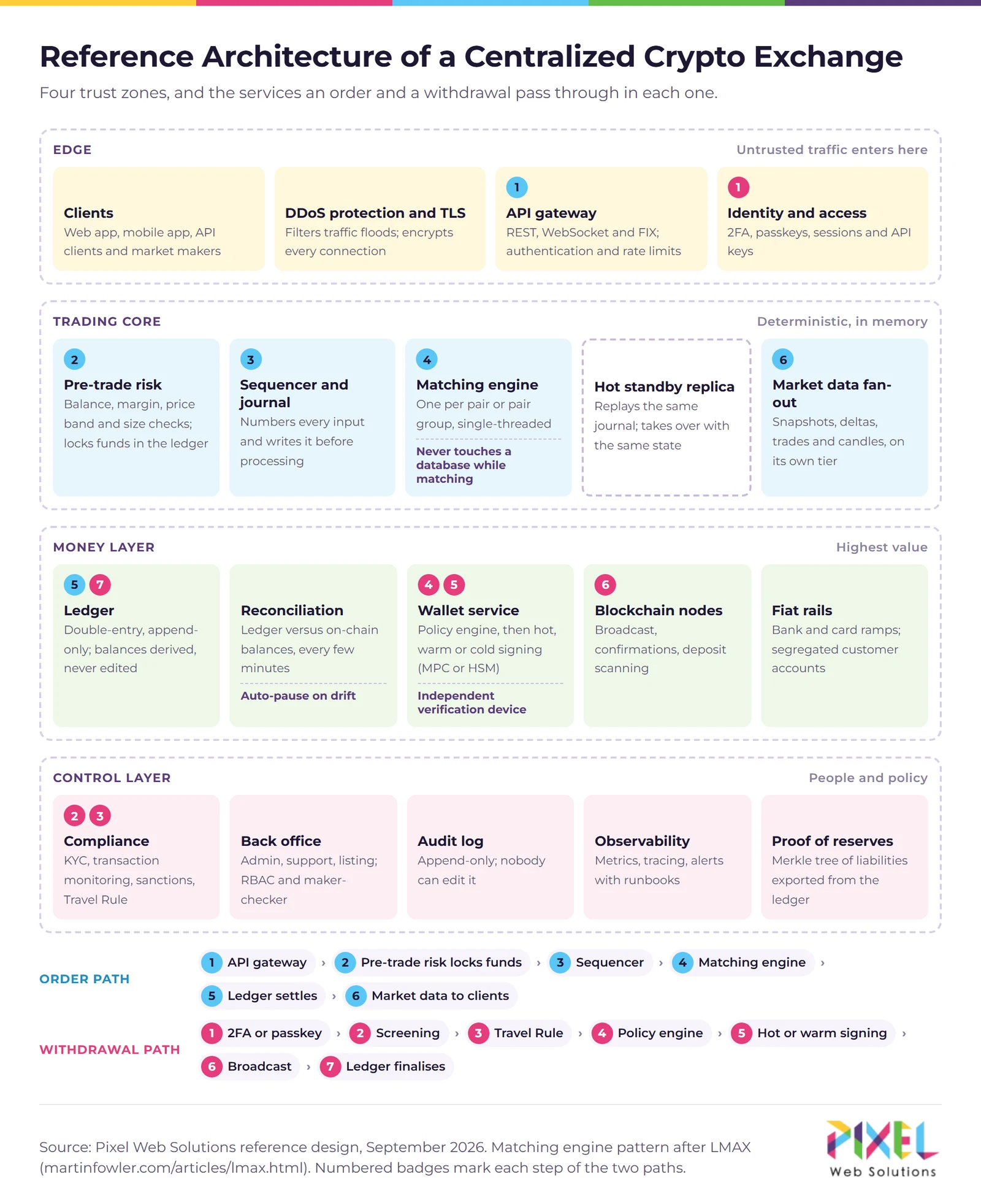

A Reference Crypto Exchange Architecture You Can Hand to Your Engineers

This is the specification we recommend a founder brings to the first engineering meeting. Each row is a service with the requirement that makes it production-grade.

A Worked Sizing Example

Capacity targets should come from your own traffic assumptions, with the maths written down. Here is an example for a mid-sized launch; replace every assumption with your numbers.

• Market maker load: 5 × 40 × 10 = 2,000 order messages per second.
• Retail load: 20,000 ÷ 60 = about 333 order messages per second.
• Normal peak: 2,000 + 333 = about 2,333 per second; at a 10x volatility spike, about 23,300 per second.
• Design target: roughly twice the spike, so about 50,000 order messages per second across all engines, which is about 1,250 per second per pair if load were even. In practice two or three pairs carry most of the flow, so size the busiest engine for the full spike.
• Market data is the bigger number: if 20,000 connected clients each receive 10 updates per second, the fan-out tier sends 200,000 messages per second. That is why market data must run on its own horizontally scaled tier, never inside the matching engine.

Hot wallet sizing follows the same logic. If customers hold $50 million in assets and average daily withdrawals are $400,000 with a busiest day of $1.2 million, a hot wallet holding one busiest day ($1.2 million, or 2.4% of assets) covers normal demand. A warm wallet holding a few days more refills it, and the rest stays in cold storage. By the Coinbase rule above, your corporate capital should exceed that $1.2 million hot balance.

Handing It Over: The Engineering Checklist

• Write the event journal and replay before any feature work; test a full rebuild of the order book from the journal.
• Define latency and throughput targets from your sizing table and load-test to twice the spike.
• Make the ledger invariants automated tests: debits equal credits, no negative balances, locked plus available equals total.
• Put reconciliation and withdrawal auto-pause in the first release, not the second.
• Document the signing policy: thresholds, approvers, time locks, allowlists and the independent verification device.
• Run a disaster recovery drill and a penetration test before public launch.

Centralized, Decentralized and Hybrid Exchange Architecture

The architecture above describes a centralized exchange. The other two models move key parts on-chain:

If you want off-chain speed with self-custody, our guide to hybrid crypto exchange development explains the settlement layer in detail.

Wrapping Up

In the digital world, fortune favours well-architected exchanges. A carefully planned cryptocurrency exchange architecture keeps the matching engine fast, the ledger exact, the wallets locked down and the proof of reserves one report away. Even the best blueprint needs skilled engineers to bring it to life.

At Pixel Web Solutions, we build exchanges on this reference design. A white-label exchange starts at $25,000 to $50,000, a custom exchange from $100,000 to $150,000+, and a hybrid exchange $80,000 to $180,000; our breakdown of crypto exchange development cost shows where the money goes by module. As a leading crypto exchange development company, we understand every layer of crypto exchange architecture, from the matching engine to cold storage. If you're ready to launch a secure and scalable exchange, talk to our team. A strong foundation is the key to long-term success, so let's make yours unshakable.

Frequently Asked Questions

What is the architecture of a crypto exchange?

A centralized crypto exchange has four zones: the edge (apps, API gateway, authentication), the trading core (risk checks, sequencer, matching engine, market data), the money layer (ledger, wallets, fiat rails, reconciliation) and the control layer (compliance, admin, audit, monitoring). Orders flow through the trading core; funds flow through the money layer.

How does a crypto exchange matching engine work?

It keeps an in-memory order book for each trading pair and matches incoming orders by price-time priority: best price first, then earliest order at that price. It processes events one at a time in a fixed sequence, writes every input to a journal first, and can rebuild its state by replaying that journal.

What is crypto exchange wallet architecture?

It is the design of how the exchange stores and moves customer crypto. Most exchanges use a small hot wallet for daily withdrawals, a policy-gated warm wallet that refills it, and cold storage for most assets, with multisig or MPC signing and a withdrawal pipeline that screens every transfer.

How is security ensured in crypto exchange architecture?

Through layers: DDoS protection and TLS at the edge, hashed passwords and 2FA for accounts, encryption at rest, role-based admin access with maker-checker approval, tiered wallets with independent transaction verification, an append-only audit log, and continuous reconciliation of the ledger against on-chain balances.

What database does a crypto exchange use?

The matching engine does not use a database while matching; it works in memory with an event journal. The ledger usually runs on a relational database with strong transactions, such as PostgreSQL, while caches, market data and analytics use specialised stores. Our tech stack guide, linked above, compares the options.

What is the difference between CEX and DEX architecture?

A CEX matches orders off-chain and holds user funds in its own wallets, recording ownership in an internal ledger. A DEX runs matching and settlement in smart contracts, and users keep their own keys. A hybrid exchange matches off-chain but settles on-chain.

How much does it cost to build a crypto exchange?

At Pixel Web Solutions, a white-label exchange costs $25,000 to $50,000, a custom exchange $100,000 to $150,000+, and a hybrid exchange $80,000 to $180,000. Licensing, liquidity and compliance tooling are separate budgets, and the cryptocurrency exchange architecture you choose decides how much each module costs.
